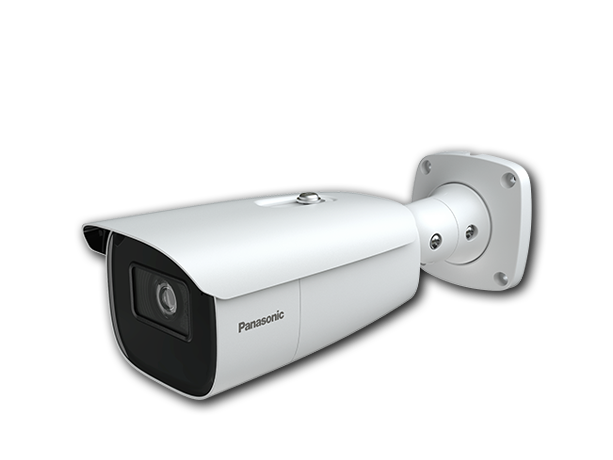

Panasonic PM-PA4ULVR-W 4MP Varifocal ANPR Bullet IP Camera

187.150 Equivalent$487

Camera type: Bullet
Resolution: 4MP
Lens: Varifocal
IR range: 50–70 m
Protection: IP67

4MP bullet camera, 2.8–12 mm varifocal lens, IR 50–70 m, IP67. Supplied and installed in Muscat and across Oman by MDT, authorised Panasonic dealer.

Available to order

SKU: PM-PA4ULVR-W Category: Bullet Cameras Tags: 4MP IP camera, ANPR camera Oman, Bullet camera Muscat, IP camera Oman, License plate recognition camera, ONVIF camera, Outdoor CCTV camera, Panasonic CCTV Oman, Panasonic PM-PA4ULVR-W, Project Series, Varifocal camera Brand: Panasonic

Overview

The Panasonic PM-PA4ULVR-W is a 4MP bullet network camera with a 2.8–12 mm varifocal lens. It offers 120 dB wide dynamic range, infrared night vision up to 70 m and IP67 protection, and supports ONVIF for easy integration with your recorder and software.

Key features

4MP Varifocal ANPR bullet network camera
4.3x Optical Zoom
120dB Wide Dynamic Range
Color Night Vision: Color: 0.001lux@F1.6, AGC ON
IR range: 50~70m
IP67 protection from dust and water
Advanced encryption and access control
NDAA

Where it fits

The PM-PA4ULVR-W suits building perimeters, entrances, car parks, warehouses, yards and facades. Our engineers can recommend the right lens, mounting, recorder storage and PoE switch for your site.

Supply, installation and support in Oman

Modern Digital Technology (MDT) is an authorised Panasonic dealer in Muscat, Oman. We supply the genuine Panasonic PM-PA4ULVR-W, survey your site, install and configure it with a compatible Panasonic recorder and network, and support it with an annual maintenance contract. Request a quotation for a single unit or a complete project in Muscat and across Oman.

Documents

Download the official PM-PA4ULVR-W datasheet (PDF) · Product page on Panasonic.com

Specifications are supplied by the manufacturer and may change without notice. Refer to the official datasheet for the latest details.

Specifications

At a glance

Brand: Panasonic
Model (part number): PM-PA4ULVR-W
Series: Project Series
Type: Bullet

Camera

Type: 4MP Varifocal ANPR Bullet Network Camera
Image Sensor: 1/1.8″ CMOS
Max Resolution: 4MP (2688×1520)
Electronic Shutter: 1/1s~1/100000 s
Min. Illumination: Color: 0.001lux@F1.6, AGC ON
IR Distance / Light Range: 50~70m

Lens

Focal length: 2.8~12mm@F1.6
Focus: Motorized
Iris Type: DC AUTO
Optical zoom: 4.3x (Motorized zoom )

Lens Mount

Angular Field of View: H.FoV: 100°~48.5°; V.FoV: 54 °~26.5°; D.FoV: 119°~ 55.8°
Day & Night: ICR


Video Compression: Mainstream: H.265+/H.265/H.264+/H.264; Sub/third stream: H.265+/H.265/H.264+/H.264/MJPEG
Supported Resolution: 4MP (2688×1520); 2K (2560×1440); 3MP (2304×1296); 1080P (1920×1080); 720P (1280×720); D1(704×480); CIF(352×288)
Number of Supported Stream: 3
Mainstream: 60Hz: 4MP/2K/3MP/1080P/720P (1~30fps); 50Hz: 4MP/2K/3MP/1080P (1~25fps); HFR Mode:; 60Hz:1080P (1~60fps); 50Hz: 1080P (1~50fps)
Sub Stream: 60Hz: 720P/D1/CIF (1~30fps); 50Hz: 720P/D1/CIF (1~25fps)
Third Stream: 60Hz: D1/CIF (1~30fps); 50Hz: D1/CIF (1~25fps)
Bit Rate: 64Kbps~8Mbps
Bit Rate Type: VBR/CBR
Image Settings: ROI; Saturation; Brightness; Hue; Contrast; Wide Dynamic; Sharpness; Image Mirror; Image Flip; NR; etc. adjustable through client software or web browser
Audio Compression: G711A/U
Region Of Interest: Each ROI to be configured separately

Operational

Wide Dynamic Range(WDR): 120dB
Back Light Compensation (BLC): Yes
High Light Compensation (HLC): Yes
Digital Noise Reduction (DNR): Yes
S/N ratio: ≥ 50dB
Angle Adjustment: Pan: 0°~360°; Tilt: 0°~90°; Rotation: 0°~360°

ANPR Camera Details

Recommended ANPR Distance: 3~8m
Snapshot: Original image (4MP resolution); license plate image
Vehicle Plate Database: 10000 with NVR
Capture Speed Range: 0~80km/h
Capture Rate: In the recommended installation and lighting condition, the vehicle capture rate: ≥ 99%
LPR Accuracy Rate: Entrance & Exit: ≥ 99%; Road: ≥ 98%; (Under recommended installation and lighting condition)
Wiegand: Yes (26bit)

Entrance / exit

Barrier Gate Control Mode: Camera or Platform control
Relay Output: 1-ch relay output; Supporting opening/closing/suspending of a barrier gate
Screen Display: Support connecting a screen through RS485 interface to display captured license plates

Interfaces

Network: RJ 45 10M/100M self-adaptive Ethernet port
Video: CVBS output (BNC x1)
Audio: 1CH audio input; 1CH audio output
Storage: Built-in micro SD card slot, up to 256GB
Alarm: 1CH alarm input; 1CH alarm output
RS485: Yes

General

Power Supply: AC24V / DC12V / PoE
PoE: Yes , IEEE802.3af/at
Power Consumption: < 12W
Weather Protection: IP67 protection from dust and water
Operating Environment: -30°C~60°C (-22°F~140°F); Humidity: less than 95% (non-condensing)
Storage Environment: -30°C~65°C (-22°F~149°F); Humidity: less than 95% (non-condensing)
Dimensions (mm): 272.3×94.9×88.9
Weight (net): Approx.1.176KG
Installation: Ceiling mounting; Wall mounting
Certificate: EMC: EN 55032:2015+A11:2020 EN 55035:2017+A11:2020; Safety: EN IEC 62368-1:2020+A11:2020; RoHS: 2011/65/EU
