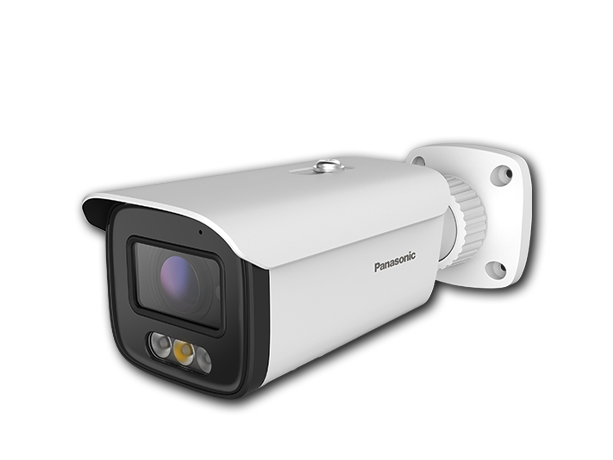

Name: Panasonic PM-VB2ULVC-W 2MP Motorized-Lens Bullet IP Camera
Brand: Panasonic
SKU: PM-VB2ULVC-W
Price: 28.000 OMR
Availability: BackOrder

Overview

The Panasonic PM-VB2ULVC-W is a 2MP bullet network camera with a 2.8–12 mm motorized varifocal lens. It offers 120 dB wide dynamic range, infrared night vision up to 50 m and IP67 protection, and supports ONVIF for easy integration with your recorder and software.

Key features

2MP Varifocal bullet full colour Network camera
4.3x Optical Zoom
120dB Wide Dynamic Range
Color Night Vision: Color: 0.006 lux @F1.6, AGC ON
30~50m IR night view distance; 30~40m white light view distance
IP67 protection from dust and water
Advanced encryption and access control
NDAA

Where it fits

The PM-VB2ULVC-W suits building perimeters, entrances, car parks, warehouses, yards and facades. Our engineers can recommend the right lens, mounting, recorder storage and PoE switch for your site.

Supply, installation and support in Oman

Modern Digital Technology (MDT) is an authorised Panasonic dealer in Muscat, Oman. We supply the genuine Panasonic PM-VB2ULVC-W, survey your site, install and configure it with a compatible Panasonic recorder and network, and support it with an annual maintenance contract. Request a quotation for a single unit or a complete project in Muscat and across Oman.

Documents

Download the official PM-VB2ULVC-W datasheet (PDF) · Product page on Panasonic.com

Specifications are supplied by the manufacturer and may change without notice. Refer to the official datasheet for the latest details.

Specifications

At a glance

Brand: Panasonic
Model (part number): PM-VB2ULVC-W
Series: Value Series
Type: Bullet

Camera

Type: 2MP Varifocal Bullet Full Colour Network Camera
Image Sensor: 1/2.8″ CMOS
Max Resolution: 2MP (1920×1080)
Electronic Shutter: 1/3s ~ 1/100000s
Min. Illumination: Color: 0.006 lux @F1.6, AGC ON
IR Distance / Light Range: 30~50m IR night view distance; 30~40m white light view distance

Lens

Focal length: 2.8~12mm@F1.4
Focus: Motorized
Iris Type: Fixed Iris
Optical zoom: 4.3x (Motorized zoom )
Lens Mount: Ø 14
Angular Field of View: H.FoV: 98°~33°; V.FoV: 52°~20°; D.FoV: 120°~40°
Day & Night: ICR


Video Compression: Mainstream: H.265+/H.265/H.264+/H.264; Sub/third stream: H.265+/H.265/H.264+/H.264/MJPEG
Supported Resolution: 1080P (1920×1080); 720P (1280×720); D1(704×480); VGA (640×480); 480×240; CIF(352×288)
Number of Supported Stream: 3
Mainstream: 60Hz: 1080P/720P (1~30fps); 50Hz: 1080P/720P (1~25fps)
Sub Stream: 60Hz: D1/VGA/CIF (1~30fps); 50Hz: D1/VGA/CIF (1~25fps)
Third Stream: 60Hz: D1/480×240/CIF (1~30fps); 50Hz: D1/480×240/CIF (1~25fps)
Bit Rate: 64Kbps~6Mbps
Bit Rate Type: VBR/CBR
Image Settings: ROI; Saturation; Brightness; Hue; Contrast; Wide Dynamic; Sharpness; Image Mirror; Image Flip; NR; etc. adjustable through client software or web browser
Audio Compression: G711A/U
Region Of Interest: Each ROI to be configured separately

Operational

Wide Dynamic Range(WDR): 120dB
Back Light Compensation (BLC): Yes
High Light Compensation (HLC): Yes
Digital Noise Reduction (DNR): Yes
S/N ratio: ≥50dB
Angle Adjustment: Pan: 0°~360°; Tilt: 0°~90°; Rotation: 0°~360°

Interfaces

Network: RJ 45 10M/100M self-adaptive Ethernet port
Audio: 1CH audio input; 1CH built-in MIC
Storage: Built-in micro SD card slot, up to 256GB

DORI distance

Lens: 2.8~12mm(W); 2.8~12mm(T)
Detect: 44m(144ft); 123m(402ft)
Observe: 18m(58ft); 49m(160ft)
Recognize: 9m(28ft); 25m(80ft)
Identify: 4m(14ft); 12m(39ft)

General

Power Supply: DC12V/PoE
PoE: Yes, IEEE802.3af
Power Consumption: < 8.5W
Weather Protection: IP67 protection from dust and water
Operating Environment: -30°C~60°C (-22°F~140°F); Humidity: less than 95% (non-condensing)
Storage Environment: -30°C~65°C (-22°F~149°F); Humidity: less than 95% (non-condensing)
Dimensions (mm): 218.1×72.9× 73.1
Weight (net): Approx.0.684KG
Installation: Ceiling mounting; Wall mounting
Certificate: EMC: EN 55032:2015+A11:2020 EN 55035:2017+A11:2020; Safety: EN IEC 62368-1:2020+A11:2020; RoHS: 2011/65/EU
