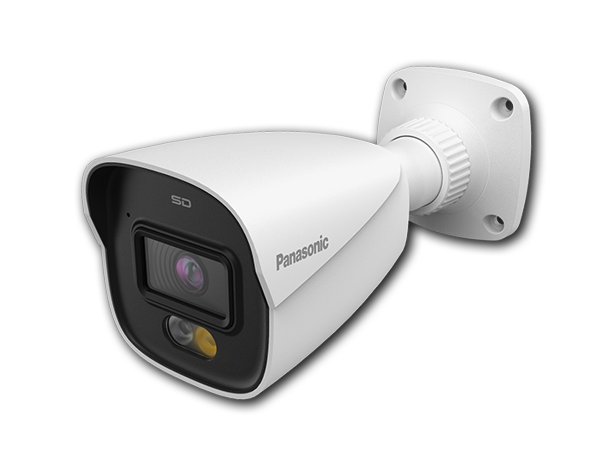

Name: Panasonic PM-EB8ULFC-W 8MP Fixed-Lens Bullet IP Camera
Brand: Panasonic
SKU: PM-EB8ULFC-W
Price: 32.000 OMR
Availability: BackOrder

Overview

The Panasonic PM-EB8ULFC-W is a 8MP bullet network camera with a 3.6 mm or 2.8 mm fixed lens. It offers 120 dB wide dynamic range, infrared night vision up to 30 m and IP67 protection, and supports ONVIF for easy integration with your recorder and software.

Key features

8MP Fixed Bullet Network camera
120dB Wide Dynamic Range
Color Night Vision: Color: 0.01 lux @F1.6, AGC ON
20~30m IR night view distance; 20~30m white light view distance
IP67 protection from dust and water
Advanced encryption and access control
NDAA

Where it fits

The PM-EB8ULFC-W suits building perimeters, entrances, car parks, warehouses, yards and facades. Our engineers can recommend the right lens, mounting, recorder storage and PoE switch for your site.

Supply, installation and support in Oman

Modern Digital Technology (MDT) is an authorised Panasonic dealer in Muscat, Oman. We supply the genuine Panasonic PM-EB8ULFC-W, survey your site, install and configure it with a compatible Panasonic recorder and network, and support it with an annual maintenance contract. Request a quotation for a single unit or a complete project in Muscat and across Oman.

Documents

Download the official PM-EB8ULFC-W datasheet (PDF) · Product page on Panasonic.com

Specifications are supplied by the manufacturer and may change without notice. Refer to the official datasheet for the latest details.

Specifications

At a glance

Brand: Panasonic
Model (part number): PM-EB8ULFC-W
Series: Eco Series
Type: Bullet

Camera

Type: 8MP Fixed Bullet Network Camera
Image Sensor: 1/2.7″ CMOS
Max Resolution: 8MP (3840×2160)
Electronic Shutter: 1/3s~1/100000 s
Min. Illumination: Color: 0.01 lux @F1.6, AGC ON
IR Distance / Light Range: 20~30m IR night view distance; 20~30m white light view distance

Lens

Focal length: 2.8mm@F1.6
Focus: Fixed
Iris Type: Fixed Iris
Optical zoom: No
Lens Mount: M12
Angular Field of View: H.FoV: 106.5°; V.FoV: 58.5°; D.FoV: 124°
Day & Night: ICR


Video Compression: Mainstream: H.265+/H.265/H.264+/H.264; Sub stream: H.265+/H.265/H.264+/H.264/MJPEG
Supported Resolution: 8MP (3840×2160); 6MP (3200×1800); 4MP (2688×1520); 2K (2560×1440); 1080P (1920×1080); 720P (1280×720); D1(704×480); VGA (640×480); 640×360, 480×240; CIF(352×288)
Number of Supported Stream: 2
Mainstream: 60Hz: 8MP/6MP/4MP/2K/1080P (1~20fps); 50Hz: 8MP/6MP/4MP/2K/1080P (1~20fps)
Sub Stream: 60Hz: 720P/D1/VGA/640×360/480×240/CIF (1~20fps); 50Hz: 720P/D1/VGA/640×360/480×240/CIF (1~20fps)
Bit Rate: 64 Kbps~10Mbps
Bit Rate Type: VBR/CBR
Image Settings: ROI; Saturation; Brightness; Hue; Contrast; Wide Dynamic; Sharpness; Image Mirror; Image Flip; NR; etc. adjustable through client software or web browser
Audio Compression: G711A/U
Region Of Interest: Each ROI to be configured separately

Operational

Wide Dynamic Range(WDR): 120dB
Back Light Compensation (BLC): Yes
High Light Compensation (HLC): Yes
Digital Noise Reduction (DNR): Yes
S/N ratio: ≥50dB
Angle Adjustment: Pan: 0°~360°; Tilt: 0°~80°; Rotation: 0°~360°

Interfaces

Network: RJ 45 10M/100M self-adaptive Ethernet port
Audio: 1CH audio input; 1CH built-in MIC
Storage: Built-in micro SD card slot, up to 256GB

DORI distance

Lens: 2.8mm
Detect: 77m(253ft)
Observe: 31m(101ft)
Recognize: 15m(51ft)
Identify: 8m(25ft)

General

Power Supply: DC12V/PoE
PoE: Yes, IEEE802.3af
Power Consumption: < 7W
Weather Protection: IP67 protection from dust and water
Operating Environment: -30°C~60°C (-22°F~140°F); Humidity: less than 95% (non-condensing)
Storage Environment: -30°C~65°C (-22°F~149°F); Humidity: less than 95% (non-condensing)
Dimensions (mm): 167.6×75×74.6
Weight (net): Approx.0.416KG
Installation: Ceiling mounting; Wall mounting
Certificate: EMC:EN 55032:2015+A11:2020 EN 55035:2017+A11:2020; Safety: EN IEC 62368-1:2020+A11:2020; RoHS:2011/65/EU
