Panasonic PM-VT8ULVC-W 8MP Motorized-Lens Turret IP Camera

52.200 Equivalent$136

Camera type: Turret
Resolution: 8MP
Lens: Motorized varifocal
IR range: 30–50 m
Protection: IP67

8MP turret camera, 2.8–12 mm motorized varifocal lens, IR 30–50 m, IP67. Supplied and installed in Muscat and across Oman by MDT, authorised Panasonic dealer.

Available to order

SKU: PM-VT8ULVC-W Category: Turret Cameras Tags: 8MP IP camera, IP camera Oman, ONVIF camera, Outdoor CCTV camera, Panasonic CCTV Oman, Panasonic PM-VT8ULVC-W, Turret camera Muscat, Value Series, Varifocal camera Brand: Panasonic

Overview

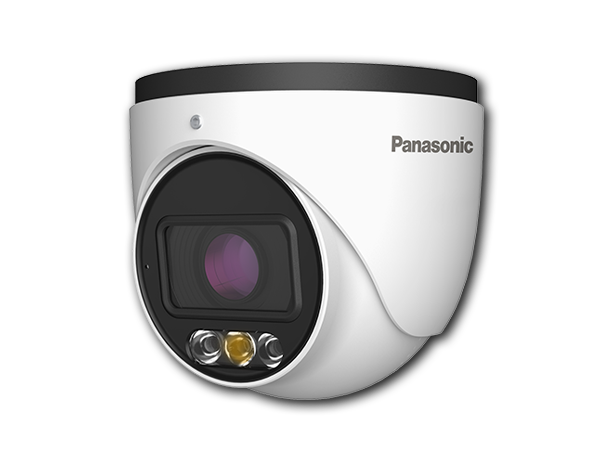

The Panasonic PM-VT8ULVC-W is a 8MP turret network camera with a 2.8–12 mm motorized varifocal lens. It offers 120 dB wide dynamic range, infrared night vision up to 50 m and IP67 protection, and supports ONVIF for easy integration with your recorder and software.

Key features

8MP Varifocal turret full colour camera
4.3x Optical Zoom
120dB Wide Dynamic Range
Color Night Vision: 0.02 lux @F1.6, AGC ON
30~50m IR night view distance; 30~40m white light view distance
IP67 protection from dust and water
Advanced encryption and access control
NDAA

Where it fits

The PM-VT8ULVC-W suits shop fronts, offices, corridors, stairwells and entrances where a compact camera that is easy to aim is needed. Our engineers can recommend the right lens, mounting, recorder storage and PoE switch for your site.

Supply, installation and support in Oman

Modern Digital Technology (MDT) is an authorised Panasonic dealer in Muscat, Oman. We supply the genuine Panasonic PM-VT8ULVC-W, survey your site, install and configure it with a compatible Panasonic recorder and network, and support it with an annual maintenance contract. Request a quotation for a single unit or a complete project in Muscat and across Oman.

Documents

Download the official PM-VT8ULVC-W datasheet (PDF) · Product page on Panasonic.com

Specifications are supplied by the manufacturer and may change without notice. Refer to the official datasheet for the latest details.

Specifications

At a glance

Brand: Panasonic
Model (part number): PM-VT8ULVC-W
Series: Value Series
Type: Turret

Camera

Type: 8MP Varifocal Turret Full Colour Camera
Image Sensor: 1/2.8″ CMOS
Max Resolution: 8MP (3840×2160)
Electronic Shutter: 1/3s~1/100000s
Min. Illumination: 0.02 lux @F1.6, AGC ON
IR Distance / Light Range: 30~50m IR night view distance; 30~40m white light view distance

Lens

Focal Length: 2.8~12mm@F1.6
Focus: Motorized Varifocal
Iris Type: Fixed Iris
Optical Zoom: 4.3x (Motorized zoom )
Angular Field of View: H.FoV: 97.3°~34°; V.FoV: 52.3°~17.7°; D.FoV: 116°~37°
Day&Night: ICR


Video Compression: Mainstream: H.265+/H.265/H.264+/H.264; Sub/third stream: H.265+/H.265/H.264+/H.264/MJPEG
Resolution: 8MP (3840×2160); 6MP (3200×1800); 4MP (2688×1520); 2K (2560×1440); 1080P (1920×1080); 720P (1280×720); D1(704×480); VGA (640×480); 640×360, 480×240; CIF(352×288)
Number of Supported Stream: 3
Mainstream: 8MP (1~20fps); 60Hz: 6MP/4MP/2K/1080P (1~30fps); 50Hz: 6MP/4MP/2K/1080P (1~25fps)
Sub Stream: 60Hz: 720P/D1/VGA/640×360/CIF/480×240 (1~30fps); 50Hz: 720P/D1/VGA/640×360/CIF/480×240 (1~25fps)
Third Stream: 60Hz: 720P/D1/640×360/CIF (1~30fps); 50Hz: 720P/D1/640×360/CIF (1~25fps)
Bit Rate: 64 Kbps~12Mbps
Bit Rate Type: VBR/CBR
Image Settings: ROI; Saturation; Brightness; Hue; Contrast; Wide Dynamic; Sharpness; Image Mirror; Image Flip; NR; etc. adjustable through client software or web browser
Audio Compression: G711A/U
Region Of Interest: Each ROI to be configured separately

Operational

Wide Dynamic Range: 120dB
Back Light Compensation (BLC): Yes
High Light Compensation (HLC): Yes
Defog: Yes
Digital Noise Reduction (DNR): Yes
S/N ratio: ≥ 50dB
Angle Adjustment: Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360°

Interfaces

Network: RJ 45 10M/100M self-adaptive Ethernet port
Audio: 1CH audio input; 1CH built-in MIC
Storage: Built-in micro SD card slot, up to 256GB

DORI distance

Lens: 2.8~12mm(W); 2.8~12mm(T)
Detect: 88m(288ft); 277m(908ft)
Observe: 35m(114ft); 111m(364ft)
Recognize: 17m(56ft); 55m(180ft)
Identify: 8m(26ft); 28m(91ft)

General

Power Supply: DC12V/PoE
PoE: Yes, IEEE802.3af/at
Power Consumption: <12W
Weather Protection: IP67 protection from dust and water
Operating Environment: -30°C~60°C (-22°F~140°F); Humidity: less than 95% (non-condensing)
Storage Environment: -30°C~65°C (-22°F~149°F); Humidity: less than 95% (non-condensing)
Dimensions (mm): Ø111.6×99.6
Weight (net): Approx. 0.66KG
Installation: Ceiling mounting; Wall mounting
Certificate: EMC: EN 55032:2015+A11:2020 EN 55035:2017+A11:2020; Safety: EN IEC 62368-1:2020+A11:2020; RoHS: 2011/65/EU
