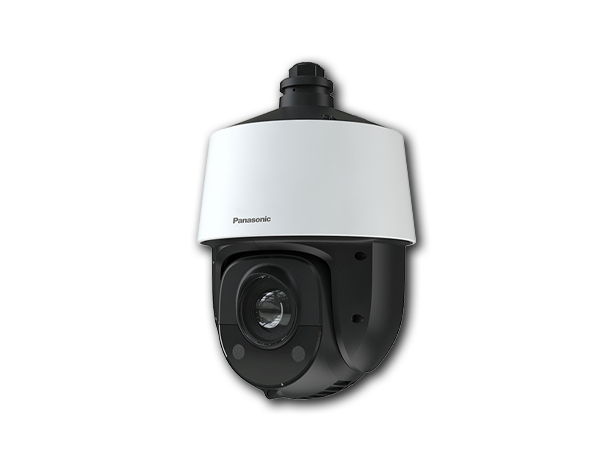

Panasonic PM-VP4ULVR-W 4MP Varifocal PTZ IP Camera

189.130 Equivalent$492

Camera type: PTZ
Resolution: 4MP
Lens: Varifocal
IR range: 50–70 m
Protection: IP66

4MP PTZ camera, 4.8–120 mm varifocal lens, IR 50–70 m, IP66. Supplied and installed in Muscat and across Oman by MDT, authorised Panasonic dealer.

Available to order

SKU: PM-VP4ULVR-W Category: PTZ Cameras Tags: 4MP IP camera, IP camera Oman, ONVIF camera, Outdoor CCTV camera, Panasonic CCTV Oman, Panasonic PM-VP4ULVR-W, Project Series, PTZ camera Muscat, Varifocal camera Brand: Panasonic

Overview

The Panasonic PM-VP4ULVR-W is a 4MP PTZ network camera with a 4.8–120 mm varifocal lens. It offers 120 dB wide dynamic range, infrared night vision up to 70 m and IP66 protection, and supports ONVIF for easy integration with your recorder and software.

Key features

4MP PTZ Network Camera
25x Optical Zoom
120dB Wide Dynamic Range
Color Night Vision: Color 0.01Lux @ (F1.65 AGC ON)
IR range: 160m(525 f.t.); dual stack IR LED Array
IP66 protection from dust and water; IK10(Except Front glass) protection for vandal resistance; 6000V Lightning Protection; Surge Protection and Voltage Transient Protection
Advanced encryption and access control
NDAA

Where it fits

The PM-VP4ULVR-W suits large yards, car parks, industrial sites, ports, farms and wide open areas that need active tracking and zoom. Our engineers can recommend the right lens, mounting, recorder storage and PoE switch for your site.

Supply, installation and support in Oman

Modern Digital Technology (MDT) is an authorised Panasonic dealer in Muscat, Oman. We supply the genuine Panasonic PM-VP4ULVR-W, survey your site, install and configure it with a compatible Panasonic recorder and network, and support it with an annual maintenance contract. Request a quotation for a single unit or a complete project in Muscat and across Oman.

Documents

Download the official PM-VP4ULVR-W datasheet (PDF) · Product page on Panasonic.com

Specifications are supplied by the manufacturer and may change without notice. Refer to the official datasheet for the latest details.

Specifications

At a glance

Brand: Panasonic
Model (part number): PM-VP4ULVR-W
Series: Project Series
Type: PTZ

Camera

Type: 4MP PTZ Network Camera
Image sensor: 1/2.7″ progressive scan CMOS, BSI, NIR+
Max Resolution: Up to 2560×1440 resolution
Shutter Speed: 60Hz:1/30s~1/30,000s; 50Hz:1/25s~1/25,000s
Mini. Illumination: Color 0.01Lux @ (F1.65 AGC ON); B/W 0.002Lux @(F1.65 AGC ON); 0Lux with IR
IR Distance / Light Range: 160m(525 f.t.); dual stack IR LED Array

Lens

Focal length: f=4.8-120mm l@ F1.65~F3.8 (wide-tele)
Iris Type: DC-IRIS, 16 Stops
Iris control: Auto; Manual
Optical Zoom: 25x optical zoom
Angular Field of View: Horizontal: 55°~2.4°±5%; Vertical: 33°~1.4°±5%; Diagonal: 61.5°~2.8°; (wide-tele)±5%
Day&Night: Auto; Manual; Time schedule

PTZ

Pan Range: 360°endless
Pan speed: Configurable, from 0.1~200°/s; Preset speed: 240°/s
Tilt Range: From-10° to 90°; auto flip
Tilt Speed: Configurable, from 0.1°~ 200°/s; Preset speed: 240°/s
Zoom Speed: Approx. 3.6s (optical zoom, wide-tele)
Proportional Zoom: Yes
Preset: 360
Cruise: 4 traces, record time over 3 minutes for each trace
Trace: 4 traces, record time over 3 minutes for each trace
Power off memory: Support
Action mode: Preset; Cruise; Trace; Auto Scan; Random Scan
3D Positioning: Support
PTZ Position Display: Support
Schedule Task: Preset; Cruise; Trace; Random Scan; Boundary Scanning; Dome reboot

Supplement light / ir

Light distance: 160m(525 f.t.); dual stack IR LED Array
Smart IR: Yes
IR Cut Type: Removable IRCut filter


Video compression: H.265+/H.265/H.264+/H.264/MJPEG
Supported Resolution: 4MP (2560×1440); 1080P (1920×1080); 720P (1280×720); 704×576; VGA(640×480); CIF(352×288)
Number of Supported Stream: 3
Mainstream: 60Hz/30fps: 2560×1440,1920×1080,1280×960,1280×720; 50Hz/25fps: 2560×1440,1920×1080,1280×960,1280×720
Sub stream: 60Hz/30fps (704×480, 640×480, 352×240); 50Hz/25fps: (704×576, 640×480, 352×288)
Third Stream: 60Hz/30fps (1920×1080, 1280×960, 1280×720, 704×480, 640×480, 352×240); 50Hz/25fps (1920×1080, 1280×960, 1280×720, 704×576, 640×480, 352×288)
H.264 Standard: H.264; AVC codec BP/MP/HP; Level 5.1
H.265 Standard: H.265; HEVC codec MP; level 5.0
Bit Rate: 64Kbps to 8Mbps
Bit Rate Type: VBR/CBR
Image setting: Flip; Mirror; Saturation; Brightness; Contrast; Sharpness; AGC; etc.adjusted by client
Audio compression: G.711 A/U
Audio Bit Rate: 64K bps

Operational

WDR: 120dB
White Balance: Auto; Manual; Indoor; Outdoor
Gain control: Auto; Manual
SNR: ≥52dB
AE Enhancement: Back Light Compensation (BLC); High Light Compensation (HLC); Wide Dynamic range (WDR)
Privacy Mask: 4 areas, up to 8 per request
Picture overlay: Logo picture could be overlaid on video with 128x128pixels; 24bits BMP format
OSD overlay: Max 15 characters/line; 8 lines; White or red font color

Interface

Network: 1 RJ45 10M/100M Adaptive Ethernet; Support PoE+
Alarm Interface: 1 Alarm input(Dry contact); 1 Alarm output
Audio Interface: 1 audio input(MIC in); 1 audio output; line level; impedance,600Ω
Storage: Built-in micro SD card slot, up to 256GB
Electric Fan &Heater: Yes
Water removal: Remove water-drops by quick spinning; blow hot air to glass to remove frost ice

DORI distance

Lens: 4.8mm; 120mm
Detect: 96m(315 f.t.); 2200m(7218 f.t.)
Observe: 38m(124.7 f.t.); 873m(2864.3 f.t.)
Recognize: 19.2m(63 f.t.); 440m(1443.6 f.t.)
Identify: 9.6m(31.5 f.t.); 220m(721.8 f.t.)

Intelligent Analytics

Face capture: Default off; Detecting max 15 faces at same scene; Detecting; Tracking; Capturing
Road traffic: Vehicle detecting and tracking

General

Power Supply: DC12V±25%; 3000mA; PoE+ (802.3.at); max 23W include IR ON+PTZ working
PoE: PoE+ (802.3.at)
Power Consumption: Max. 23W
Weather and Vandal Protection: IP66 protection from dust and water; IK10(Except Front glass) protection for vandal resistance; 6000V Lightning Protection; Surge Protection and Voltage Transient Protection
Operating Environment: -40°C~60°C(-40°F~140°F); Cold start at – 30°C(30minutes waiting)90%RH
Storage Environment: -40°C~70°C ; ≤ 95% RH
Dimensions (mm): Φ 173mm×268mm (Φ6.8 inch × 10.55 inch)
Weight (net): Approx. 2.1 Kg (4.63 lb.)
Certificate: EMC: EN 55032:2015+A11:2020 EN 55035:2017+A11:2020; Safety: EN IEC 62368-1:2020+A11:2020; RoHS: 2011/65/EU
