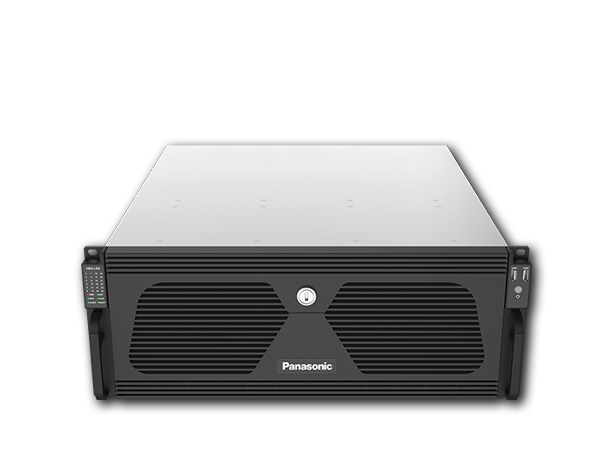

Panasonic PM-PN128CH 128-Channel Network Video Recorder (NVR)

Name: Panasonic PM-PN128CH 128-Channel Network Video Recorder (NVR)
Brand: Panasonic
SKU: PM-PN128CH
Price: 1574.780 OMR
Availability: BackOrder

1,574.780 Equivalent$4,096

128-channel network video recorder, 24 HDD bays up to 12 TB each. Supplied and installed in Muscat and across Oman by MDT, authorised Panasonic dealer.

Available to order

Request project price

Ask about this product on WhatsApp

SKU: PM-PN128CH Category: Network Video Recorders (NVR) Tags: 128 channel NVR, NVR Oman, Panasonic CCTV Oman, Panasonic NVR Muscat, Panasonic PM-PN128CH, Project Series Brand: Panasonic

Overview

The Panasonic PM-PN128CH is a 128-channel network video recorder. It holds 24 hard drives of up to 12 TB each. It gives you reliable recording, playback and remote viewing for your IP camera system in Oman.

Key features

128CH NVR Redundant PS
Bandwith of Incoming/Outgoing 768Mbps
Simultaneous playback of 16CH
Inteligent Analytics

Where it fits

The PM-PN128CH suits offices, shops, warehouses, schools, hotels and larger multi-building sites. Our engineers can size the cameras, hard drives and network for your site.

Supply, installation and support in Oman

Modern Digital Technology (MDT) is an authorised Panasonic dealer in Muscat, Oman. We supply the genuine Panasonic PM-PN128CH, survey your site, install and configure it with a compatible Panasonic recorder and network, and support it with an annual maintenance contract. Request a quotation for a single unit or a complete project in Muscat and across Oman.

Documents

Download the official PM-PN128CH datasheet (PDF) · Product page on Panasonic.com

Specifications are supplied by the manufacturer and may change without notice. Refer to the official datasheet for the latest details.

Specifications

At a glance

Brand: Panasonic
Model (part number): PM-PN128CH
Series: Project Series
Type: NVR

Network Video Recorder

Type: 128CH NVR Redundant PS
OS: Embedded Linux

Video

IP Video Input: 128
Network Bandwidth: Incoming: 768Mbps; Outgoing: 768Mbps; *When the AI function of the Camera is enabled, the actual incoming bandwidth (max.bitrate) is more than the set value in the NVR.
Resolution: 16MP; 12MP; 8MP; 6MP; 5MP; 4MP; 3MP; 1080P; 1280×1024; 960P; 720P; 960H; D1; CIF
Multi-screen Display: Main output: 1/4/6/8/9/13/16/25/32/36/64; AUX output 1: 1/4/6/8/9/13/16/25/32/36; AUX output2: 1/4/6/8/9/13/16; AUX output 3: 1/4/6/8/9/13/16; Max. 132(64+36+16+16)
Compression: H.264; H.265; H.265+; H.265S

Audio

Network input: 128
Local Input: RCA×1 (for two-way talk)
Local Output: RCA×1
HDMI Audio Output: Support
Audio Compression: G.711(U/A)

Record

Resolution: 16MP; 12MP; 8MP; 6MP; 5MP; 4MP; 3MP; 1080P; 1280×1024; 960P; 720P; 960H; D1; CIF
Frame Rate: NTSC: 30fps; PAL: 25fps

Playback

Simultaneous Playback: 16CH
Search: Time Slice; Time; Event; Tag; Smart Search
Function: Play; Pause; FF; Rewind; Digital zoom; Previous frame; Next frame; etc.

Decoding

Live View: 1× 16MP@30; 4×12MP (only available for main output)
Playback: 1× 16MP@30; 4× 8MP(only available for main output)

Intelligent Analytics

Face Detection Performance (AI by Camera): 128CH
Face Detection Performance (AI by NVR): 4CH (4MP)
Face Match Performance: 16CH
Comparison Capability: 36 pictures/second
Face Picture Database: 32 libraries; 10000 Face Pictures
Face Picture Search: Search by picture is supported
Database Management: Add; modify; delete; search face pictures
Face Picture Adding: Add face pictures through APP; WEB and external import
Face Picture Comparison: Supports successful face recognition alarm and stranger match alarm
Track: Track display on a map
Statistical Graph of Information: Bar graph
Statistical Mode of Information: Statistics by day, week, month, quarter as well as customized time period

Perimeter protection

Human/Vehicle Classification (AI by Camera): 128CH
Human/Vehicle Classification (AI by NVR): 8CH (2MP)
Human/Vehicle Attribute Analysis (AI by Camera): Yes

Alarm

Mode: Manual; Sensor; Motion; Exception; Smart events; etc.
Input: 24CH
Channel Capacity: 8CH
Triggering: Record; Snapshot; Preset; E-mail; etc.

Other function

Fisheye: Supports fisheye dewarping via NVR; Web Client; Mobile APP
Plate Recognition (AI by Camera): Yes

Network

Interface: RJ 45 1000 Mbps × 4
Protocol: TCP/IP, HTTP, HTTPS, 802.1x, FTP, DHCP, DDNS, RTP, RTSP, RTCP; NTP, UPnP, SMTP, IPv6, UDP, WebSocket, PPPoE, SNMP, IGMP
Client Connection: Max. 128 users access
Mobile Device OS: Ios; Android

Port

PoE Network Port: No
SFP Interface: SFP × 2
Storage Expansion: Mini SAS × 2 (currently no function)

Storage

HDD Interface: SATA × 24 max 18TB per HDD
RAID Type: RAID0,1,5,6,10

External Interface

E-SATA Interface: 2
USB: USB3.0× 1; USB2.0 × 3
RS485: Yes (full-duplex); connect to keyboard
RS232: Yes
12V Output: Yes (1A)
Power Switch: Yes

Decoding card

HDMI Interface: 8 HDMI output; 2 HDMI input
HDMI Output: HDMI1:; 3840×2160@60; 3840×2160@30; 1920×1080; HDMI2:; 3840×2160@60; 3840×2160@30; 1920×1080; HDMI3:; 3840×2160@60; 3840×2160@30; 1920×1080; HDMI4:; 1920×1080
HDMI Input: 3840×2160@60; 3840×2160@30; 1920×1080; 1280×1024; 1024×768; (HDMI Input only can be; output to the monitor connected to the HDMI output interface of the same decoding card)
Display Layout: HDMI1/HDMI2/HDMI3/HDMI4; 1/4/6/8/9/13/16/25/32/36 144(36+36+36+36)
Decoding Capability: 32×1080P@30fps (1×16MP@30fps per HDMI output)

Others

Power: Single or redundant, AC100V / 240V
Consumption: ≤ 50W (without HDD)
Dimensions (mm): W = 483; D = 535; H = 175
Weight: 16.35KG
Certificate: EMC:EN 55032:2015+A11:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; Safety: EN IEC 62368-1:2020+A11:2020; RoHS:2011/65/EU
Working Environment: -10~50℃; Humidity: 10%~90%
