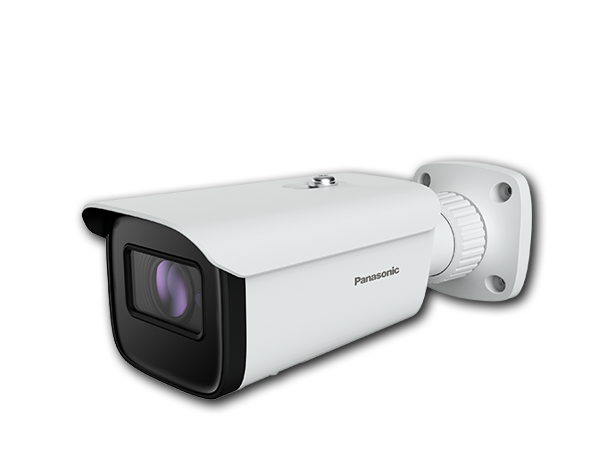

Panasonic PM-VB5ULFR-W 5MP Fixed-Lens Bullet IP Camera

53.680 المعادل$140

Camera type: Bullet
Resolution: 5MP
Lens: Fixed
IR range: 30–50 m
Protection: IP67

5MP bullet camera, 3.6 mm fixed lens, IR 30–50 m, IP67. Supplied and installed in Muscat and across Oman by MDT, authorised Panasonic dealer.

متوفر عند الطلب

رمز المنتج: PM-VB5ULFR-W التصنيف: Bullet Cameras الوسوم: 5MP IP camera, Bullet camera Muscat, IP camera Oman, ONVIF camera, Outdoor CCTV camera, Panasonic CCTV Oman, Panasonic PM-VB5ULFR-W, Project Series العلامة التجارية: Panasonic

نظرة عامة

The Panasonic PM-VB5ULFR-W is a 5MP bullet network camera with a 3.6 mm fixed lens. It offers 120 dB wide dynamic range, infrared night vision up to 50 m and IP67 protection, and supports ONVIF for easy integration with your recorder and software.

Key features

5MP Fixed Bullet Network Camera
120dB Wide Dynamic Range
Color Night Vision: Color: 0.005 lux @F1.6, AGC ON
IR range: 30 ~ 50 m
IP67 Protection from dust and water
Advanced encryption and access control
NDAA

Where it fits

The PM-VB5ULFR-W suits building perimeters, entrances, car parks, warehouses, yards and facades. Our engineers can recommend the right lens, mounting, recorder storage and PoE switch for your site.

Supply, installation and support in Oman

Modern Digital Technology (MDT) is an authorised Panasonic dealer in Muscat, Oman. We supply the genuine Panasonic PM-VB5ULFR-W, survey your site, install and configure it with a compatible Panasonic recorder and network, and support it with an annual maintenance contract. Request a quotation for a single unit or a complete project in Muscat and across Oman.

Documents

Download the official PM-VB5ULFR-W datasheet (PDF) · Product page on Panasonic.com

Specifications are supplied by the manufacturer and may change without notice. Refer to the official datasheet for the latest details.

المواصفات

لمحة سريعة

Brand: Panasonic
Model (part number): PM-VB5ULFR-W
Series: Project Series
Type: Bullet

Camera

Type: 5MP Fixed Bullet Network Camera
Image Sensor: 1/2.5″CMOS
Max Resolution: 2880×1624
Electronic Shutter: 1/4s~1/100000 s
Min. Illumination: Color: 0.005 lux @F1.6, AGC ON
IR Distance / Light Range: 30 ~ 50 m

Lens

Focal length: 3.6 mm@F1.6
Focus: Fixed
Iris Type: Fixed Iris
Lens Mount: M12
Angular Field of View: H.FoV: 79°; V.FoV:39°; D.FoV:96°
Day & Night: ICR


Video Compression: Main stream: H.265+/H.265/H.264+/H.264; Sub/thirdstream:H.265+/H.265/H.264+/H.264/MJPEG
Supported Resolution: 5MP(2880×1624); 4MP(2688×1520); 1080P(1920×1080); 720P(1280×720); D1(704×480); VGA(640×480); 480×240; CIF(352×288)
Number of Supported Stream: 3
Mainstream: 60Hz: 5MP/4MP/1080P (1~30fps); 50Hz: 5MP/4MP/1080P (1~25fps)
Sub Stream: 60Hz: 1080P/720P/D1/VGA/CIF/480×240 (1~30fps); 50Hz: 1080P/720P/D1/VGA/CIF/480×240 (1~25fps)
Third Stream: 60Hz: D1/480×240/CIF (1~30fps); 50Hz: D1/480×240/CIF (1~25fps)
Bit Rate: 64 Kbps ~10 Mbps
Bit Rate Type: VBR/CBR
Image Settings: ROI; Saturation; Brightness; Hue; Contrast; Wide Dynamic; Sharpness; Image Mirror; Image Flip; NR; etc. adjustable through client software or web browser
Audio Compression: G711A/U
Region Of Interest: Each ROI to be configured separately

Operational

Wide Dynamic Range(WDR): 120dB
Back Light Compensation (BLC): Yes
High Light Compensation (HLC): Yes
Defog: Yes
Digital Noise Reduction (DNR): Yes
S/N ratio: ≥50dB
Angle Adjustment: Pan: 0°~360°; Tilt: 0°~90°; Rotation: 0°~360°

Interfaces

Network: RJ 45 10M/100M self-adaptive Ethernet port
Audio: 1CH audio input; 1CH audio output; 1CH built-in microphone
Storage: Built-in micro SD card slot, up to 256GB
Alarm: 1CH alarm input; 1CH alarm output

DORI distance

Lens: 3.6mm
Detect: 102m(334ft)
Observe: 41m(133ft)
Recognize: 20m(67ft)
Identify: 10m(33ft)

Intelligent analytics

Statistics: Yes, with NVR or SD Card
Audio Exception Detection: Yes
Face Detection: Yes
Face Recognition and Matching: Yes, with NVR
Video Metadata(Human/Vehicle Attributes / Two Wheelers): Simultaneously captures human body; Motor vehicle and non-motor vehicle; Extracts 13 human features; 4 motor vehicle features; 1 non-motor vehicle feature

General

Power Supply: DC12V/PoE
PoE: Yes, IEEE802.3af
Power Consumption: <10.5W
Weather Protection: IP67 Protection from dust and water
Operating Environment: -30°C~60°C (-22°F~140°F); Humidity: less than 95% (non-condensing)
Storage Environment: -30°C~65°C (-22°F~149°F); Humidity: less than 95% (non-condensing)
Dimensions (mm): 218.1×70.4×80.3
Weight (net): Approx. 0.73KG
Installation: Ceiling mounting; Wall mounting
Certificate: EMC: EN 55032:2015+A11:2020 EN 55035:2017+A11:2020; Safety: EN IEC 62368-1:2020+A11:2020; RoHS: 2011/65/EU
